Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Fiber Optic Dome Joint Closure 144 C Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: Box Supply Ability: 1000pcs/week
| Size: | 21*21*4.5 Cm | Inlet & Outlet: | 3+1 Oval Ports |
| Installation Way: | Pole / Wall Mount | Sealing Way: | Heat Shrink Sealing |
| Type: | Horizontal | Material: | 100% PC |
| High Light: | 144 Core Fiber Optic Splice Closure, Underground Fiber Optic Splice Closure, 144 Core Joint Closure Box | ||

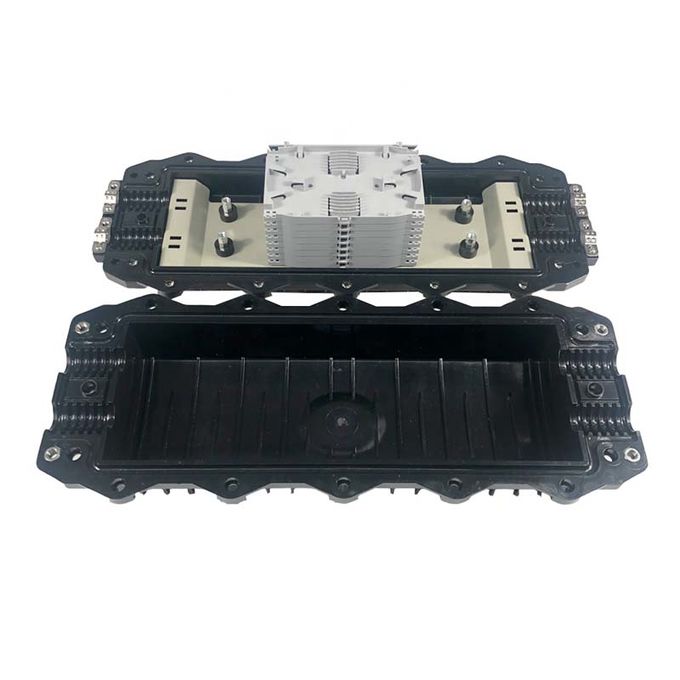

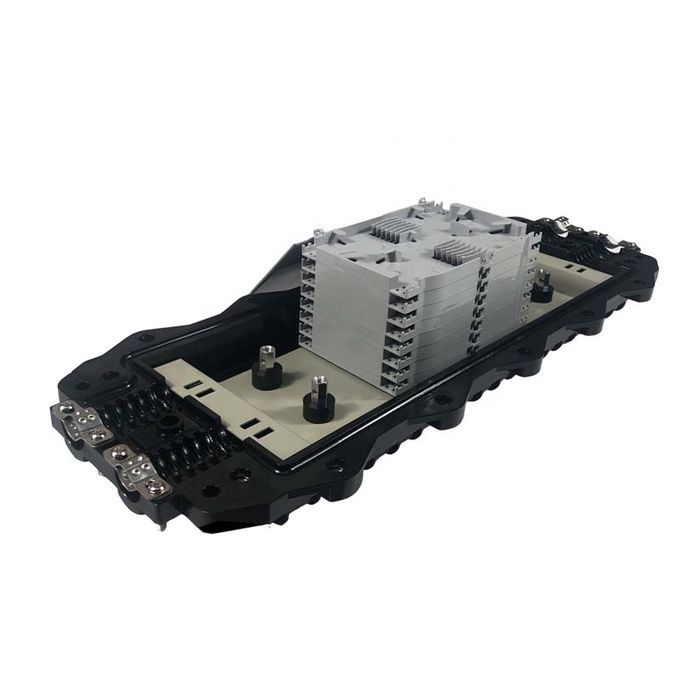

Underground Inline Fiber Optic Cable Splice Joint Closure Box 144 Core
Description:
These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.
Features:
Application:
Specification:
| Product Name | Fiber optic splice closure |
| Color | black |
| Cores | bunchy 60cores,ribbon 96-144cores |
| Protection class | IP68 |
| Seals | Mechanical seal |
| Material | PC |
| Cable out of the tube configuration | Up to four out of the tube fiber optic cable |
| Ports diameter(mm) | 16~22mm |
| Fiber radius of curvature(mm) | 30 |
| Dielectric strength(kv) | 1.5 |
| Ambient temperature(°C) | -40~+60 |
| Atmospheric pressure(Kpa) | 70~1106 |
| Tensile strength(N) | >1000 |
| Anti-stress | >2000N/ 10cm2 Stress,Time 1min |
| Insulation Resistance | >2X10MΩ/500V(DC) |
| Compressive strength | 15KV(DC)/1min. No breakdown.No flashover |
| Housing dimensions(mm) | 425*163.5*87mm(L*W*H) |
| Splice Tray | Max 3 pcs, 24 cores each |
| Scope | Pole, buried, manholes, wall |
| Packing | 0.075m3/8pcs |
| Total weight | 1.46kg/1pcs |
