Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Pigtail SC/UPC Minimum Order Quantity: 10pcs Price: Negotiable Packaging Details: bag Supply Ability: 20000pcs/Week
| Fiber Type: | Single Mode 9/125 | Connector Type: | SC/UPC |
| Length: | 1M Or Customized | Cable Color: | White Or Yellow |
| Cable Diameter: | 0.9mm | Insertion Loss: | ≤0.3dB |
| Operating Temperature: | -20°C To+50°C | ||
| High Light: | 1M 0.9mm SC UPC Pigtail, 0.9mm Single Mode Fiber Optic Pigtail, SC UPC Single Mode Fiber Optic Pigtail | ||

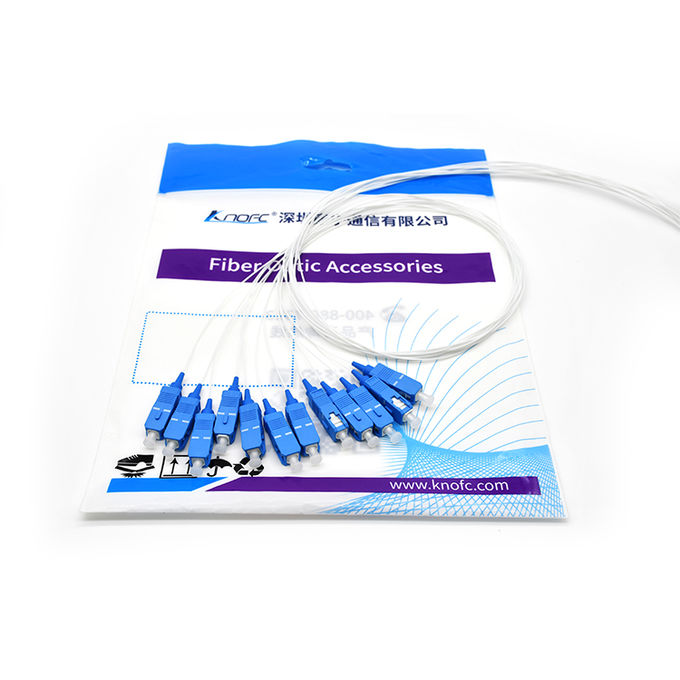

Fiber Optic Pigtail SC/UPC 1M 0.9mm Singlemode Simplex
Description:
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Features:
Application:
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature(℃) | -30 ~ +70 | |
| Storage Temperature(℃) | -40 ~ +85 | |
| Package | 1 pieces/bag | |
