Place of Origin: China Brand Name: KNOFC Certification: ISO9001/CE Model Number: ADSS 24core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden drum Supply Ability: 500000M/Week
| Product Name: | ADSS Fiber Cable 24core | Fiber Type: | Singlemode/Multimode |
| Fiber Count: | 2-288cores | Jacket Material: | HDPE Or AT |
| Supporting Strength: | Aramid Yarn/Kevlar Yarn | Central Strength Member: | FRP |
| Span: | 50-1000M | Application: | Self-Support Aerial |
| High Light: | HDPE Jacket ADSS Fiber Cable, Kevlar Yarn ADSS Fiber Cable, 24 Core G652D Fiber Optic Cable | ||
ADSS Fiber Cable 24Core G652D Span 100M HDPE Jacket Kevlar Yarn
Description:

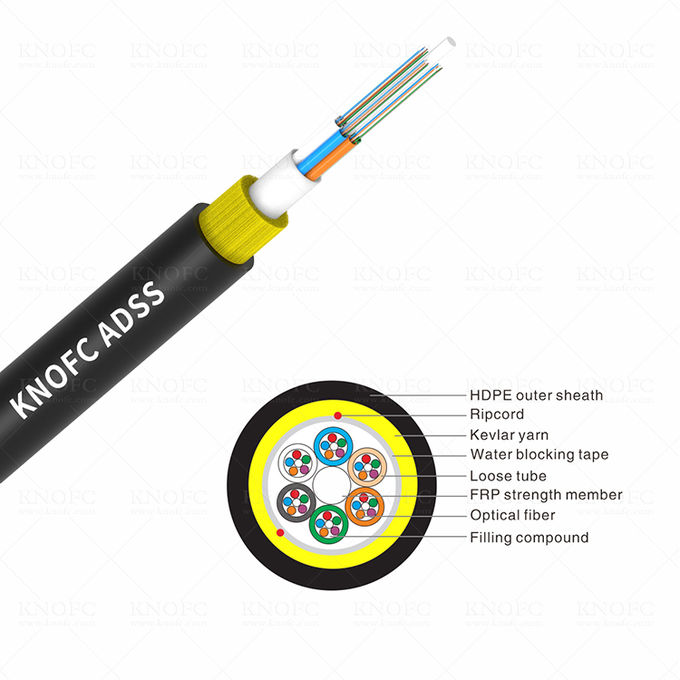

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) sheath.
Characteristics:
Application:
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Cable Mechanical Characteristic:
| Cable type | Diameter(mm) |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| ADSS-2~60 | 10.0 | 110 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-62~72 | 12.0 | 120 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-74~96 | 14.0 | 130 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-98~144 | 16.0 | 185 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-146~288 | 20.0 | 298 | 1000/3000 | 20D/10D | -20~+70 |
