Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: Patch Cord LC/UPC Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: bag Supply Ability: 10000pcs/Week
| Fiber Type: | OM3 50/125 | Fiber Count: | 1C |
| Jacket Material: | LSZH / PVC | Length: | 2M/3M/5M Or Customized |
| Connector Type: | LC/UPC-LC/UPC | Cable Diameter: | 0.9mm/2.0mm/3.0mm |
| Insertion Loss: | ≤0.3dB | Operating Temperature: | -20°C To+50°C |
| High Light: | 3.0mm Fiber Optic Patch Cord, OM3 Multimode Fiber Patch Cord, 3.0mm Multimode Fiber Patch Cord | ||

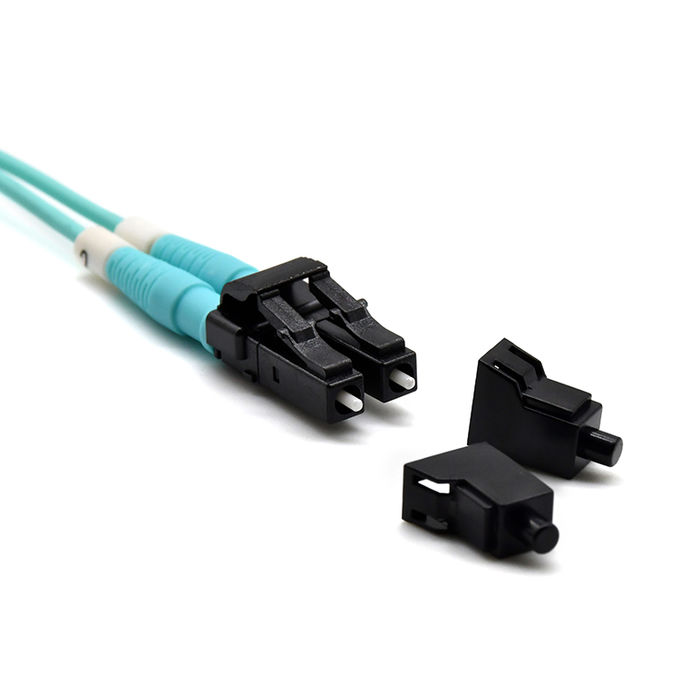

Fiber Optic Patch Cord OM3 Multimode 3M LC/UPC-LC/UPC 3.0mm
Description:
Fiber optic patch cord is becoming more popular for fiber installation project It is definitely an efficient and economical solution rather than on site termination or splicing. FC, SC, LC, ST connector are available SM or MM cables type Polishing: PC, UPC and APC Applicable to connect the cable.Fiber optic patch cord are used to connect to devices and are suitable for Gigabit Ethernet, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.
Features:
Appplication:
Technical reference:
| Patch cord Connector | UPC (SM) | APC (SM) | UPC (MM) | APC(MM) |
| Return Loss (dB) | ≥50 | ≥60 | ≥30 | ≥30 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) |
| Repeatability (dB) | ≤0.1 |
| Durability(1/Matings) | ≥500 |
| Operation Temperature (°C) | -20~+70 |
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
| Fiber type | SM 9/125um, MM 50/125um,MM 62.5/125um,ect |
| Diameter | 0.9mm 2.0mm, 3.0mm etc |
| Cable material | LSZH / PVC |
| Cores | Simplex / Duplex |
