Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Pigtail SC/UPC Minimum Order Quantity: 10pcs Price: Negotiable Packaging Details: bag Supply Ability: 20000pcs/Week
| Fiber Type: | Single Mode 9/125 | Connector Type: | SC/UPC |
| Length: | 1M Or Customized | Cable Color: | White Or Yellow |
| Cable Diameter: | 0.9mm | Insertion Loss: | ≤0.3dB |
| Operating Temperature: | -20°C To+50°C | ||
| High Light: | 12 Cores Ribbon Patch Cord, SC APC Ribbon Patch Cord, Fan Out SC APC Pigtail | ||

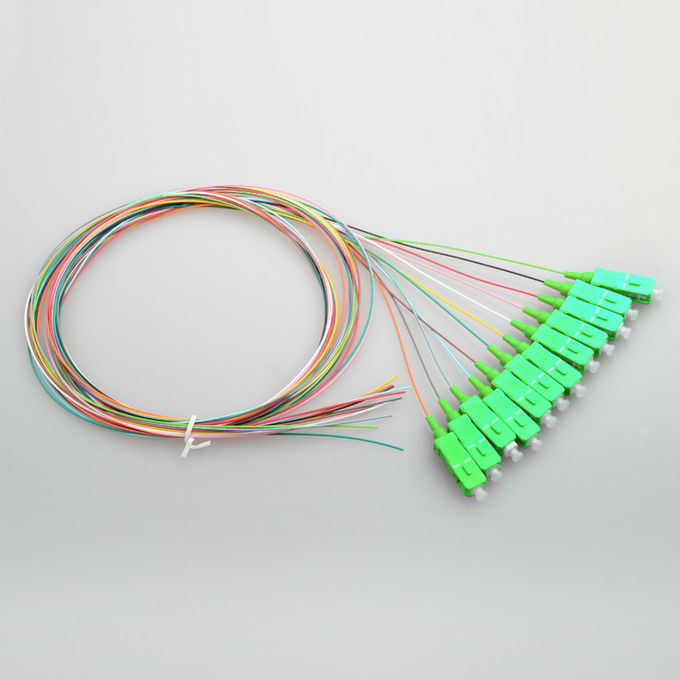

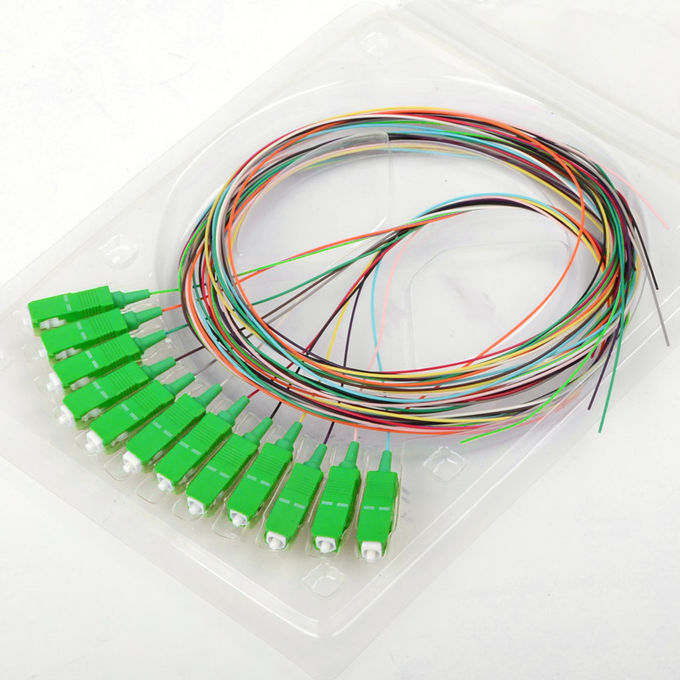

Pigtail 12 Cores SC/APC Ribbon Pigtail Fiber Optic Fan-Out
Description:
Optical Fiber Pigtail can provide a quick and easy termination of fibers in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.Our quick connector system removes any requirements for epoxy,adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.
Features:
1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules
Application:
1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
5.Metro
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)
9.FTTX
Specification:
| Parameter | Unit | Mode Type | PC | UPC | APC |
| Insertion Loss | dB | SM | ≤0.3 | ≤0.3 | ≤0.3 |
| Insertion Loss | dB | MM | ≤0.3 | ≤0.3 | ----- |
| Return Loss | dB | SM | ≥50 | ≥50 | ≥60 |
| Return Loss | dB | MM | ≥35 | ≥35 | ----- |
| Fiber cable | Material | PVC, LSZH |
| Fiber cable | Diameter | 0.9mm, 2.0mm, 3.0mm |
| Connector type | SC, LC. ST. FC | |
| Repeatability | dB | Additional loss<0.1db,return loss< 5 dB |
| Interchangeability | dB | Additional loss<0.1db,return loss< 5 dB |
| Connection times | times | >1000 |
| Operating Temperature | ℃ | -20℃- +70℃ |
| Storage Temperature | ℃ | -20℃- +70℃ |
