Fiber Optic SC Connector Single Mode APC FTTH Fast Connector

Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fast Connector SC/APC
Minimum Order Quantity: 1pcs
Price: Negotiable

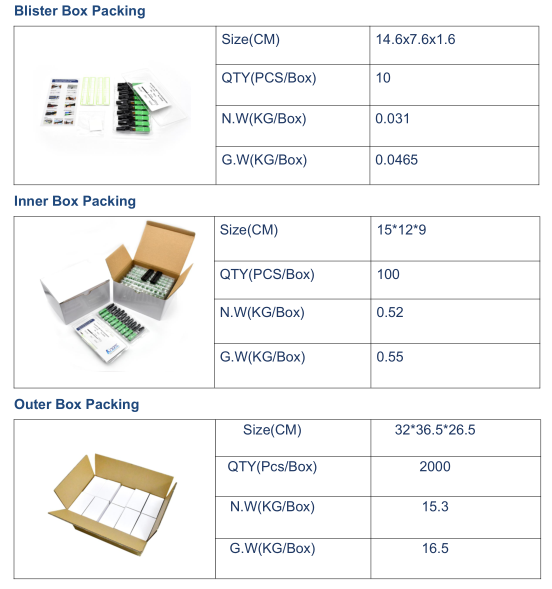

Packaging Details: Plastic boxes
Supply Ability: 50000pcs/week

我要詢價

詳情介紹

Fiber Type:	Singlemode	Fiber Cable Type:	3x2.0mm Ftth Drop Cable
Insertion Loss:	≤ 0.25dB	Return Loss:	≥50dB
Application:	FTTH,LAN,PON&Optical CATV	Operating Temperature:	-30°C To+60°C
High Light:	SC FTTH Fast Connector, Single Mode APC FTTH Fast Connector, APC Fiber Optic SC Connector

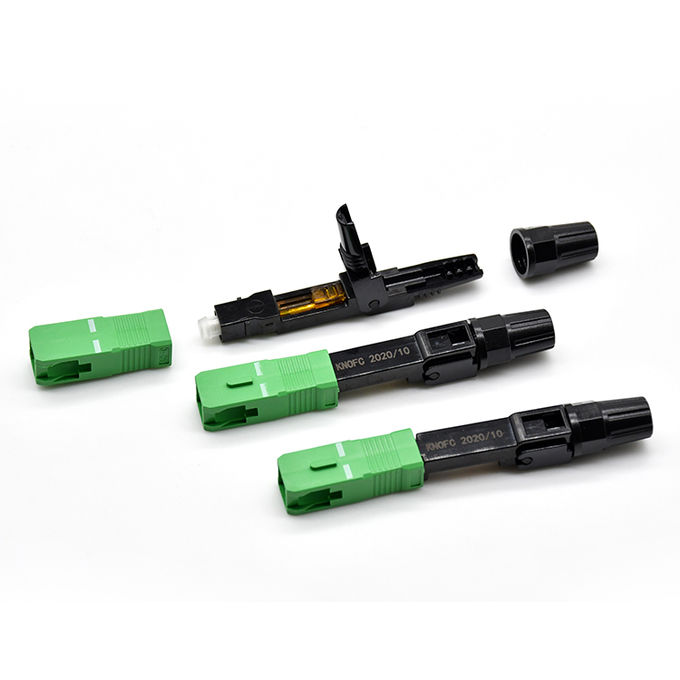

Fiber Optic SC Fast Connector APC FTTH Quick Connector Single Mode

Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.

Features:

1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)

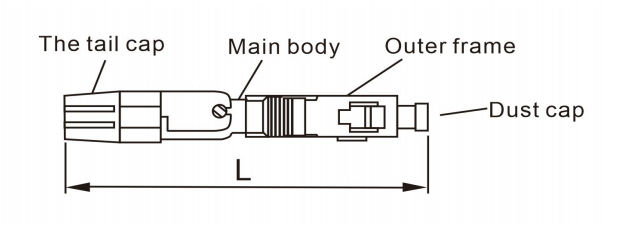

Measured the Structure:

Fiber Optic SC Connector Single Mode APC FTTH Fast Connector 0

Fiber Optic SC Connector Single Mode APC FTTH Fast Connector 1

Fiber Optic SC Connector Single Mode APC FTTH Fast Connector 2

Fiber Optic SC Connector Single Mode APC FTTH Fast Connector 3
