Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Pigtail LC/UPC Minimum Order Quantity: 10pcs Price: Negotiable Packaging Details: bag Supply Ability: 20000pcs/Week
| Fiber Type: | Single Mode 9/125 | Connector Type: | LC/UPC |
| Length: | 1M Or Customized | Cable Color: | White Or Yellow |
| Cable Diameter: | 0.9mm | Insertion Loss: | ≤0.3dB |
| Operating Temperature: | -20°C To+50°C | ||
| High Light: | 1.5M Single Mode Fiber Optic Pigtail, 1.5M Simplex LC UPC Pigtail, 0.9MM Fiber Optic Pigtail | ||

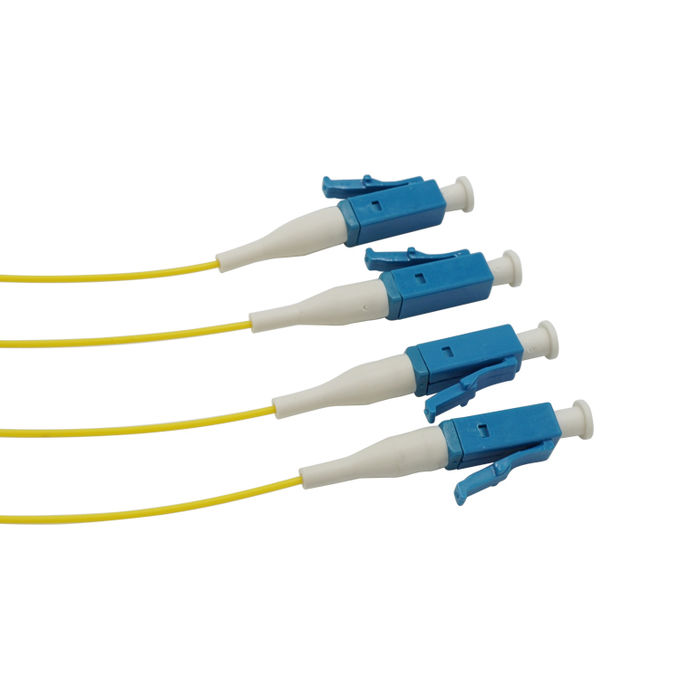

LC UPC 0.9MM fiber optic Pigtail Single mode 1.5M Simplex
Description:
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Features:
1. Integrated spring-loaded shutter
2. Simplex and duplex assemblies available
3. Singlemode and multimode fiber optic cable
4. PC and APC polishing available
5. Hybrid patch cords available upon request
6. Fan out available
Application:
1. Telecommunication networks
2. Building access
3. Cabling system. ODF
4. CATV
5. FTTX applications
Characteristics:
1. Low insertion loss, high return loss
2. Good compatibility
3. High precision of mechanical dimensions
4. High reliability & stability
5. PC, APC, UPC optional, cable length optional
6. Options available for cable colors
Specification:
| Parameter | Unit | Mode Type | PC | UPC | APC |
| Insertion Loss | dB | SM | ≤0.3 | ≤0.3 | ≤0.3 |
| Insertion Loss | dB | MM | ≤0.3 | ≤0.3 | ----- |
| Return Loss | dB | SM | ≥50 | ≥50 | ≥60 |
| Return Loss | dB | MM | ≥35 | ≥35 | ----- |
| Fiber cable | Material | PVC, LSZH |
| Fiber cable | Diameter | 0.9mm, 2.0mm, 3.0mm |
| Connector type | SC, LC. ST. FC | |
| Repeatability | dB | Additional loss<0.1db,return loss< 5 dB |
| Interchangeability | dB | Additional loss<0.1db,return loss< 5 dB |
| Connection times | times | >1000 |
| Operating Temperature | ℃ | -20℃- +70℃ |
| Storage Temperature | ℃ | -20℃- +70℃ |
