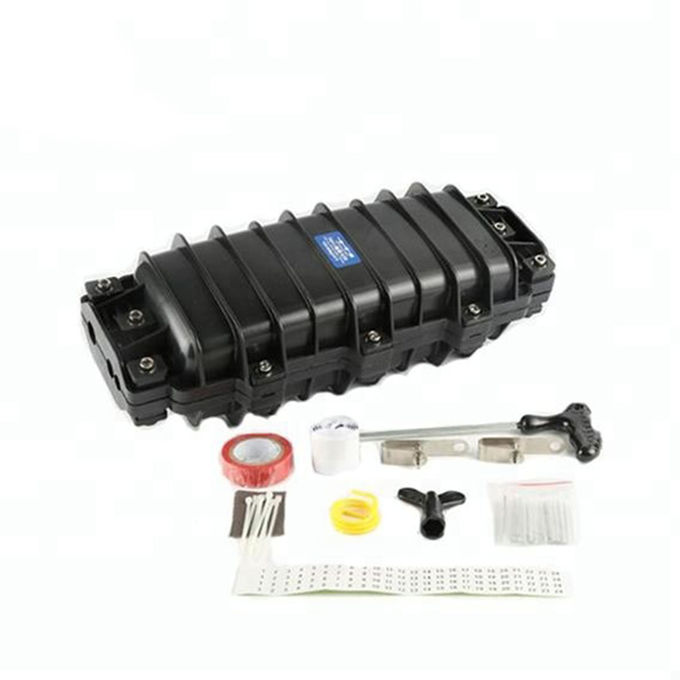

Wall mount 24-96 Core Optical Fiber Cable Joint Closure

Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 96 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week

我要詢價

詳情介紹

Size:	430x180x125 Mm	Inlet & Outlet:	3 In And 3 Out
Installation Way:	Pole / Wall Mount	Sealing Way:	Heat Shrink Sealing
Type:	Horizontal	Material:	100% PC
High Light:	24 Core Optical Fiber Cable Joint Closure, 96 Core Optical Fiber Cable Joint Closure, 24 Core Ofc Joint Enclosure

Optical Fiber Cable Joint Closure 24-96 Core Fiber Optic Splice Closure

Description:

Dome Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, duct, or for pole mounting applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.

Features:

1. Easy to re-enter
2. Cable entry/exit ports
3. Pressure testing valve and earth deriving device
4. Intergrated seal, air tight and water proof
5. Ideal for cable repair
6. Can be used in through, branch or mid span splice locations
7. Sitable for aerial, underground duct or direct burial applications

Application:

Sutable for bunchy fibers.
Aerial ,wall-mounting.
FTTH optical fiber distribution.

Specification:

Outside dimension:	430x180x125(mm)
Cable ports:	6 ports
Core capacity per tray:	12 or 24
Material:	PC
Cable diameter:	Max φ20
Max.Capacity (bunchy fiber):	24-96
Material:	PC
